Reisopack: Automatic Strapping Machines

26 Mar

Reisopack: Automatic Strapping Machines

  Handling, Reisopack, Strapper R&E Engineering



R&E Engineering is proud to be the authorised distributor for Reisopack.

Reisopack is a Spanish company that specialises in automatic strapping machines with more than 4,000 machines operating in countries around the world. Being one of the European leaders in packaging machinery, Reisopack offers a highly reliable pallet strapping machine that guarantees a 25-years-of-dailyuse lifetime. Whilst most are used in the farming and food production facilities, these strappers can also be utilised in countless other sectors. These include but not limited to logistics, building, beverages, wood and chemical industries.

Horizontal and vertical strappers are available depending on your strapping requirements. There are options of fixed or mobile-based horizontal strappers to integrate with an existing production line or to operate independently.

Each machine is also equipped with a user-friendly and easy-to-program touch-screen display panel to control/match a desired production rate.

Both the horizontal and vertical variant comes with a pressing mechanism to ensure compact and secure packaging for transport. End-product will appear pleasing, neat and professional.

Videos of these strapping machines are available in our product page here.

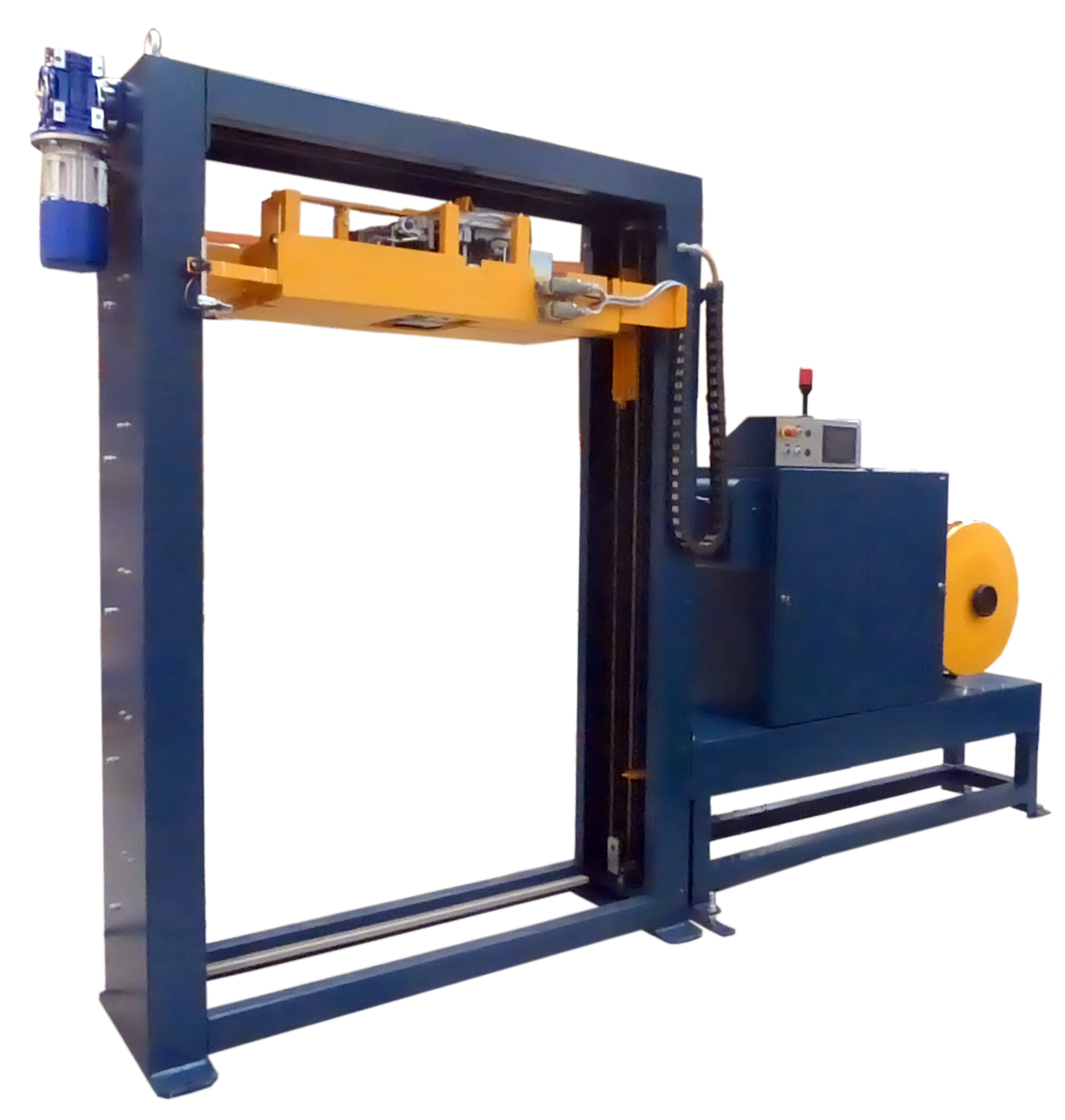

Reisopack. 2200. Automatic Strapper. Vertical. Fixed.

Model 2200: Fixed-vertical Strapper

Reisopack. 2905. Automatic Strapper. Horizontal. Fixed.

Model 2905: Fixed-horizontal Strapper

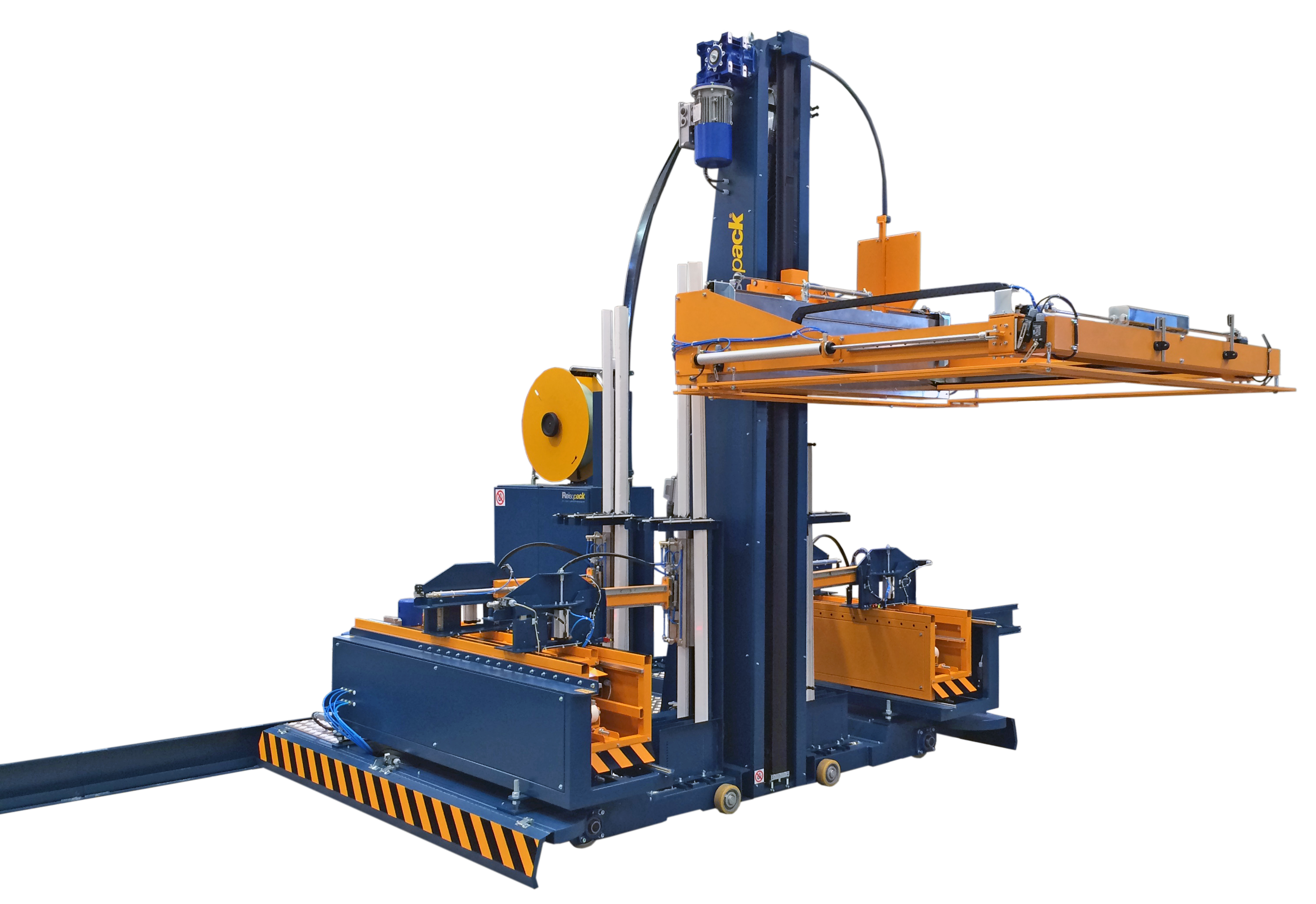

Reisopack. 2915. Automatic Strapper. Horizontal. Mobile.

Model 2915: Mobile-horizontal Strapper

Model 2200 2905 2915
Voltage 220 V/280 V – 50/60 Hz (Three-phase)
Electrical Consumption 1 kW 2 kW
Approximate Production 60 pallets/hour
Compressed Air Pressure 6 atm
Machine Dimensions
(W x L x H)		 4000 x 1200 x 3600 mm 1850 x 2915 x 3527 mm 2902 x 4180 x 4550 mm
Strap Width 8, 12, 15.5 mm (Factory Set)
Strap Thickness 0.5 – 1 mm
Welding By electrical resistance. Adjustable welding temperature & cooling time
Strap Type Polyester/Polypropylene
Tension Range 1 – 150 kg
Minimal Strapping Height 140 mm 130 mm
Maximum Strapping Height 3000 mm 2560 mm
Reisopack recommends its own high-quality consumable, Polyester (PET) Strap, to be used in their machines. However, all machines can also be programmed to use your own strapping consumable.

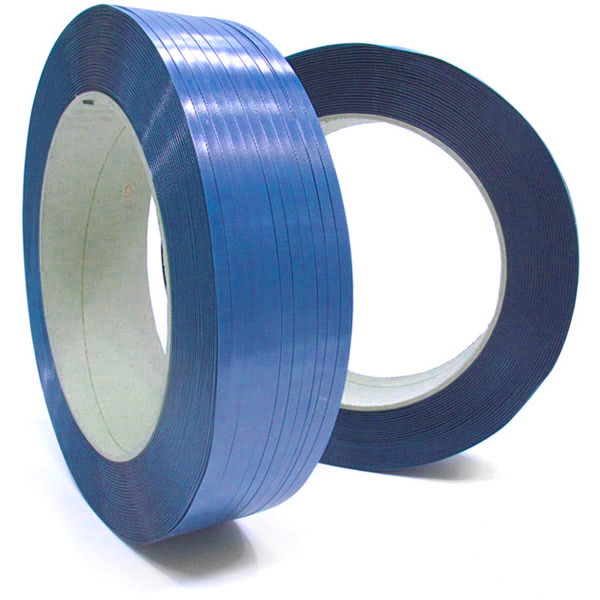

Reisopack. PET Strap. Consumable

PET Strap

Advantages:

  • Developed for high speed strapping machines.
  • Cheaper price per meter and more meters per coil for cost effectiveness.
  • 100% recyclable. Good for the environment.
  • Quick mounting system for time efficiency.
  • 60% more retention force than the polypropylene strap with an average resistance of 154 kg and elongation of 15% nominal
  • Stability against UV rays and greater thermal resistance.
  • Minor tolerances in width. Less arc and curvature.
  • High feed rigidity even at high temperature
  • More stable surface. Less abrasion.

Reisopack. PET Strap. Consumable

PET Strap

For ordering and more information on robotic and automated systems, please do not hesitate to contact us! We are passionate in helping your business grow and realise its true potential!

Stay tuned for more news and information regarding our robotic systems!
Follow us on LinkedIn and Facebook for more information and updates regarding our robotic systems!
