Stronger. Faster. Better Robotic Controller.

  CLOOS, Robotic System, Welding R&E Engineering



The new QIROX QC2 Controller, is an optimum “man-machine” interface. The new control cabinet generation QIROX Controller QC2 is particularly designed to meet the requirements of welding technology and to improve user-friendliness of the interface.

An all new servo technology ensures dynamic movement and high path accuracy of the robot during welding. The processes are controlled by an industrial PC with the capacity to simultaneously control all internal and external axes.

Every component is clearly arranged in a robust system cabinet, where they are protected from dirt and can be easily exchanged.

In total, this leads to high reliability and low maintenance expenditure. The new QIROX QC2 Controller is available in different sizes with control capabilities of 8 (micro), 11 (master) and 20 axes (advanced).



QIROX, QC2, Robotic Welding, Controller

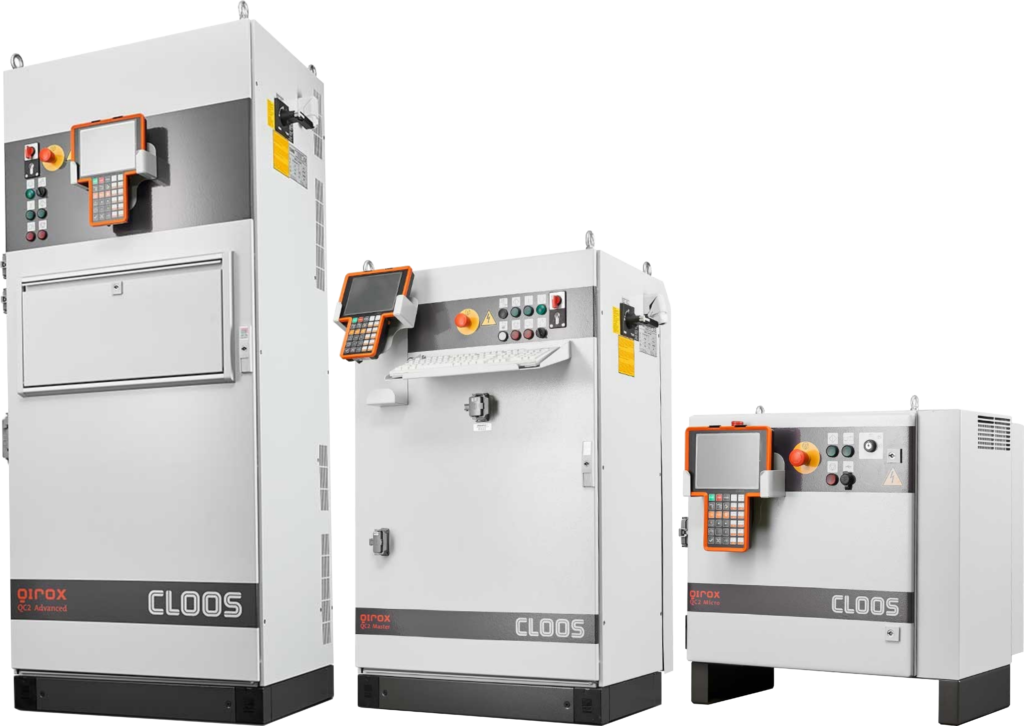

Advanced, Master and Micro Qirox QC2 Controllers respectively.



Comparison of Technical Specifications

Advanced Master Micro
Temperature 0 – 45° 0 – 45° 0 – 45°
Type of Protection IP54 IP55 IP56
Internal Axes 6 – 7 6 – 7 6
External Axes BIS 24 4 – 5 2
LAN 2 2 2
RS232C 2 2 2
Connection Capacity Up to 33 kVA
(Standard, Higher on Demand)		 Up to 12 kVA Up to 12 kVA
Humidity EN60204-1/4.4.4 EN60204-1/4.4.5 EN60204-1/4.4.6
L/W/H
(Without attached parts)		 800 x 1900 x 600 mm 800 x 1300 x 600 mm 706 x 700 x 400 mm
Weight 300 kg 250 kg 100 kg



Overview of Benefits

  • High End Distributed Computing Power: Dynamic movement and high path accuracy of the robot.
  • Absolute Reliability: Clear dirt-protected arrangement of all components in a robust system cabinet.
  • Numerous Extra Functions: Can be used in combination with any CLOOS software such as the RoboPlan and CarolaEdi offline programming software, Remote Service Manager (RSM), Process Data Manager (PDM) and User Management System (UMS).

Advanced and Master:

  • High Hardware Compatibility and Up-to-date Software: Compatible up to V7 QIROX Controller and the new QS2 QIROX Controller software.
  • Maximum Operation Comfort: Additional touch screen, lockable keyboard and optional accessories such as cabinet heating, air conditioner and plug assembly cover.

Micro:

  • Space-Saving: Compact design and low weight.
  • Flexible Use: Easy transport with overhead crane, pallet or forklift.



QIROX QC2 Controller is a product of Carl Cloos Schweißtechnik GmbH.

References:
Carl Cloos Schweißtechnik GmbH. (2017). QIROX QC2 Advanced.
Retrieved from http://www.cloos.de/de-en/products/qirox/steuerungen/roboter-qc2-adv/.

Carl Cloos Schweißtechnik GmbH. (2017). QIROX QC2 Master.
Retrieved from http://www.cloos.de/de-en/products/qirox/steuerungen/roboter-qc2-master/.

Carl Cloos Schweißtechnik GmbH. (2017). QIROX QC2 Micro.
Retrieved from http://www.cloos.de/de-en/products/qirox/steuerungen/roboter-qc2-micro/.
