Let Our Robots Do The Hard Work For You

Palletising products can induce a lot of strain into the worker’s body and can develop long-term issues and conditions such as back-pain, joints, muscles or even skeletal injuries. We understand that a palletising process is such a back-breaking work and therefore, we would like to introduce you to our Pallet Handling Giants from Nachi.

Our Palletising Robots are available in 4- and 6- axis variants with a variety of different sizes to suit all products. These palletising robots can handle payloads ranging from 50 to 800 kilograms and will definitely be able to deliver consistent results tirelessly.

For more information, contact us now!

Palletising; Robot; System;

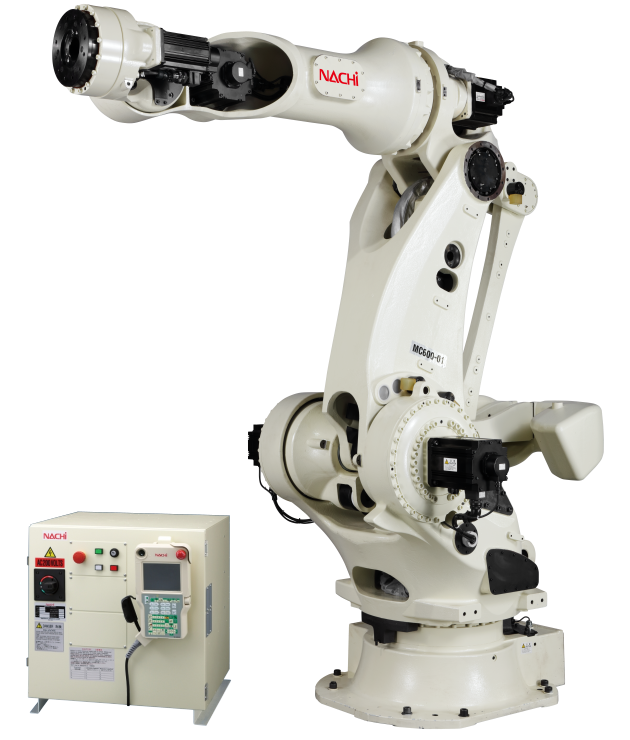

MC600 Robot

The MC600 is specifically designed for heavy and repetitive lifting tasks up to 600 kg capacity. In addition to the high payload capacity, the MC600 provides an impressive 2890 mm work envelope to perform work on several products or machines simultaneously. Superior strength, rigidity, and reach allow the MC600 to excel in large scale lifting operations.
If you need to move heavy or large objects with precision, the Nachi MC600 robot is perfect for the job!

Specifications for MC600
Number of robot axis 6
Working area 2890 mm
Wrist capacity 600 kg
Repeatability ±0.3 mm
Mounting Floor Mounting

Note: Other palletising robots of varying sizes and capacities are available.

Simple Programming

Advanced yet easy to use Palletising software intuitively guides the user through teaching new Palletising routines. Path optimisation software feature aid the programmer in minimising cycle time and increase throughput. Automatic program path generation minimises setup and teaching time by automatically creating a robot motion path from cell layout input data. After teaching “Part height adjustment” software function automatically compensates for real world conditions and eliminates the need for constant program “touch-up”.

High Speed Palletising

  • An average cycle time of 10 seconds
  • This can be reduced to 6 seconds depending on application
  • Flexible System Setup is available with variable capacity models

Flexibility

  • Easily lift different shapes and sizes
  • Optional palletising hands available to carry loads that are small or large

Robot; Teach Pendant; System;

We can also work with various brands of robots, such as FANUC, YASKAWA, ABB, KAWASAKI, PANASONIC, MOTOMAN, OTC, NACHI, DENSO, KUKA, MITSUBISHI, EPSON, STAUBLI, FOXCONN, COMAU, OMRON, and UNIVERSAL Robots
